More and more operators are realizing the benefits that managed pressure drilling (MPD) provides. From enhanced rate of penetration to minimizing equivalent circulating density changes during connections, operators are leveraging managed pressure drilling to improve their overall drilling program.
With the Flex™ MPD system, Halliburton gives you the ability to maximize the value of MPD, giving you the service level of MPD required based on your drilling objectives, in a mobile and compact package.

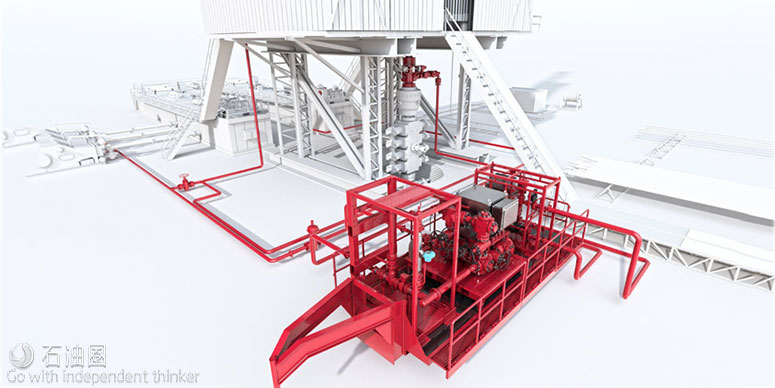

The standard Flex MPD offering is a tablet controlled solution with a single, straightforward display that allows the driller to control backpressure or choke position of the Flex MPD Choke skid during drilling, tripping, and connections all from the rig floor.
Video thumbnail
When additional control is required, the Flex MPD Pro offering incorporates rig data to provide a more intelligent automated response – adjusting backpressure based on flowrates and bit depth. It also offers an enhanced feature set – like fluid rollover compensation and surge and swab offset capabilities.
The Flex MPD system can be run as a full MPD solution providing the ultimate control in downhole pressure, equivalent circulating density management, early kick detection and influx management, and automated managed pressure cementing through our real-time hydraulic model, GB Setpoint™.
Halliburton provides a tailored and flexible solution for your managed pressure needs with the Flex MPD system.
Flex MPD™ Trailer
A MANAGED PRESSURE DRILLING SOLUTION IN A MOBILE AND COMPACT PACKAGE
OVERVIEW

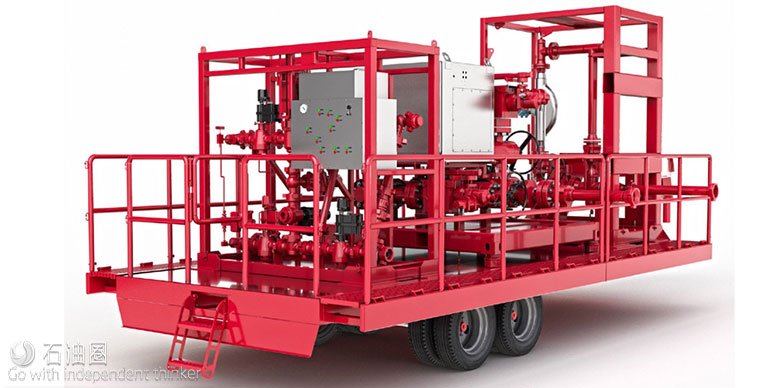

As part of the Halliburton Flex MPD™ solution, we offer a compact trailer to simplify logistics equipment layout, and reduce rig-up and rig-down time on location.
With the Flex MPD trailer, the entire managed pressure drilling package is rigged up prior to arriving on location. This removes requirements to crane off equipment, and can speed up the time to rig up MPD equipment on location. The trailer can also include the exclusive Halliburton Rig Pump Diverter.
With all this equipment on a single 22-foot trailer, no other delivery is as compact as the Flex MPD system.
FEATURES
»»Dedicated anchor points for Flex MPD choke skid, Coriolis meter, and rig pump diverter
»» Fold-out catwalk with integrated handrails
»» Storable ladder
»» 22-foot-long x 98-inch-wide deck
»» LED lighting
»» Electric over hydraulic brakes
BENEFITS
»»Reduces overall rig-up and rig-down time
»»Never take the equipment off of the trailer for simple rig-up and rig-down operations
»»Only requires rig-up of rotating control device (RCD) and flowlines
»» Compact solution for easy mobilization to and from the rigsite

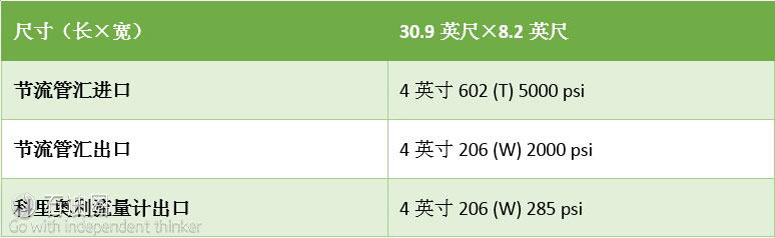

Equipment Specifications
