Baker Hughes introduces advanced small-diameter ESP system
Baker Hughes announced today the commercial release of its CENtrilift PASS™ slimline ESP system, which is designed to help operators optimize production and reserve recovery while lowering lifting costs in small-diameter wellbores or wells with restricted space due to casing patches or complex completion designs. It is the industry’s only small-diameter ESP system capable of operating at flow rates down to 50 BPD and it includes the most comprehensive suite of slimline gas-management technology.

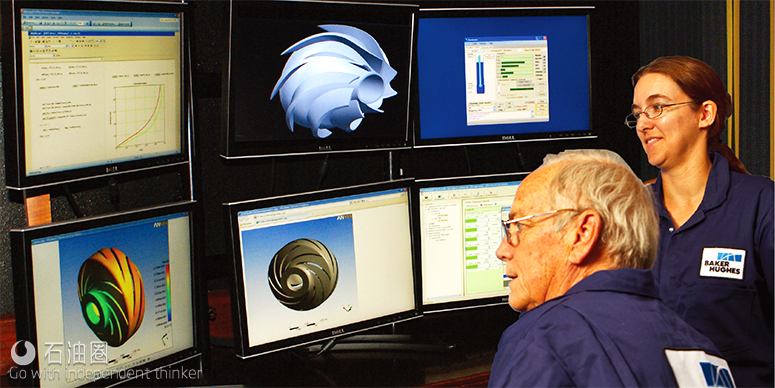

The CENtrilift PASS slimline ESP system incorporates a Baker Hughes’ FLEXPumpER™ extended-range pump, engineered using the most advanced computational fluid dynamic modeling software to provide the industry’s widest operating range for a 3.38-in pump. The FLEXPumpER pump operates at flow rates from 2,500 BPD to 50 BPD, mitigating the need to change out pumping systems as production rates decline. The pump’s optimized flow path also improves ESP system reliability by preventing solids build-up and abrasive wear in the pump.
CENtrilift PASS™ slimline ESP system includes a host of gas management capabilities, including the niXit™ gas mitigation intake that separates gas from the fluid before it can enter the pump, regardless of wellbore orientation.
The CENtrilift PASS slimline ESP system manages gas entrained in the production stream or gas slugs that break out of the reservoir. The combines natural and mechanical separation in a single design to minimize the amount of gas entering the pump, regardless of wellbore orientation. When the ESP is deployed in a horizontal or deviated orientation, gravity cups shift to block the pump inlet ports on the high side of the intake where the gas accumulates, preventing the gas from entering the pump and venting it into the annulus. When the ESP is installed in a vertical orientation, the production stream bypasses the gravity cups and mechanical vortex gas separation technology diverts gas away from the pump and into the annulus. For applications that only require mechanical gas separation, the CENtrilift PASS system includes a vortex gas separator. Unlike rotary gas separators, the vortex design is more efficient and far more effective at separating gas from the fluid before it can enter the pump.
Any gas that does enter the pump is effectively handled by combining a GI™ gas insurance boost pump and a FLEXPumpER pump. Both pump designs are engineered to optimize performance in the presence of gas. When the two pump technologies are deployed together, the system can handle more than 60 percent gas volume fractions (GVF) through the pump.
The CENtrilift PASS slimline ESP system also extends the pressure rating of the pump to 5,800 psi, allowing the ESP to be installed deeper in the well―closer to the producing zone―for greater reservoir pressure draw down and higher recovery rates. Enhancements to the 3.38-in. series motor design improve the mechanical and electrical strength of the motor by 30 percent, while reducing the angle of the motor-to-cable connection to mitigate potential damage during installation in smaller diameter wellbores.
“The CENtrilift PASS slimline ESP system gives operators who are drilling smaller diameter wells to drive down drilling costs or to improve wellbore stability a full range of options to maximize production at the lowest possible lifting costs―even in challenging downhole conditions,” said Ryan Moore, Vice President, Artificial Lift Systems. “The technology also expands the options for wells where complex completion schemes limit space availability for the artificial lift system, as well as in mature wells where casing patches restrict space in the wellbore. Without this slimline technology, operators would have to settle for less effective artificial lift methods.”
Recently, the CENtrilift PASS slimline ESP system increased production by 150 percent in a Utah well with a 5-in., 18-lb liner set at 6,900 ft in 7-in. casing. Based on the well design, a traditional 4.5-in. ESP system was initially set above the liner at 6,800 feet, more than 5,000 ft above the producing zone, which restricted production rates. The high gas volume fraction (GVF) and 230°F (110°C) bottomhole temperature also presented substantial challenges. A CENtrilift PASS slimline ESP system was reliably installed in the liner 80 percent deeper in the well, closer to the reservoir. The niXit gas management intake technology, combined with FLEXPump pump and GI boost pump designs, easily handled the high gas content in the fluid stream. The bottomhole temperature was within the operating parameters of the system, mitigating reliability issues related to motor overheating.
The CENtrilift PASS slimline ESP system is the latest example of Baker Hughes’ strategy to improve well efficiency, optimize production and increase ultimate recovery.
Case history
Wasatch Formation，UTAH
An operator in Utah had a well with a 5-in, 18-lb liner set at 6,900ft in7-in. casing. But the well design would only accommodate a traditional ESP system set above the liner – more than 5,000ft above the perforations. The high 1,000 gas volume fraction (GVF) and 230℉ (℃) bottomhole temperature were also substantial challenges for an artificial lift system.
The CENtrilift PASS slimline ESP system delivered.
